Description

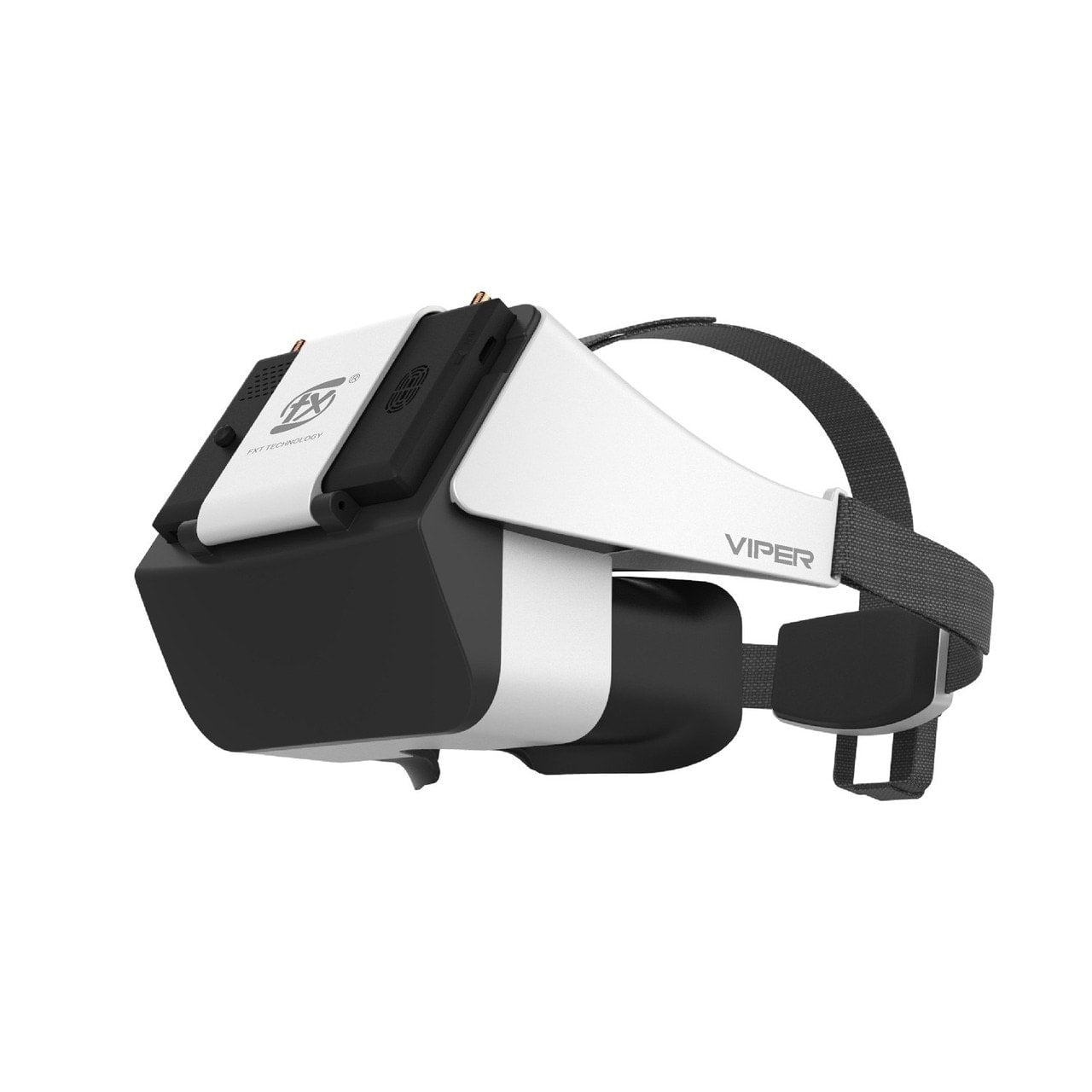

fxt viper fpv goggles FXT Viper Diversity FPV Box Goggles w/ DVR – Unmanned TechThe FXT Viper FPV goggles represent the next iteration in FPV box goggle design. Featuring an integrated refactor (uses mirrors to reflect the FPV screen to your eyes) give you two advantages. The first is that the centre of gravity can be closer to your head making the goggles more comfortable to wear. But the second advantage reduces the amount of eye strain since the refraction system reduces the amount of eye strain that you would typically get
The FXT Viper FPV goggles represent the next iteration in FPV box goggle design. Featuring an integrated refactor (uses mirrors to reflect the FPV screen to your eyes) give you two advantages. The first is that the centre of gravity can be closer to your head making the goggles more comfortable to wear. But the second advantage reduces the amount of eye strain since the refraction system reduces the amount of eye strain that you would typically get with other FPV goggles.
Another stand out feature of the FXT Viper goggles is that they can truly be worn with glasses. The soft rubber face-plate allow it to curve around your glasses, something not always possible with FPV goggles An extra bonus is that the screen is just a fully featured FPV monitor so you can take it out of the goggle unit and use is just like any other FPV monitor.
Otherwise the goggles pack in all the features you would expect from a modern set of FPV goggle, including Diversity, and a built-in DVR to record your FPV antics. The Viper goggles are lightweight for box goggles and also feature HDMI input so you can use them on your favourite FPV simulator.
Whats new with V2 Firmware
Our current batch includes the new V2 firmware which changes the following:
- DVR footage is now saved in 10 minute files vs 3 minutes on V1
- Aspect Ratio is not switchable between 16:9 and 4:3
- Can receive on full 40CH (V1 could only use 37CH)
[youtube
?fs=1&w=440&h=330]Features
- Integrated refractor
- Ergonomic design
- Useable with glasses
- High-quality image
- Integrated DVR
- Diversity RX
- Autoscan channels
- Support HD IN
How to power your FXT Viper
The Viper FPV goggles do not include any batteries. However the goggles support a huge input voltage range from 7-28V. You can use any fatshark style battery, or a lipo battery with an XT60 connector as both adapters are included. The battery fits in the pocket at the back of the head strap to help balance the goggles as you are wearing them.
Suggested Antenna Upgrades
The stock antennas includes will work fine, but its highly reccomended to include some upgraded antennas for better reception:
Budget Option
Premium Option (for the best range)
Specifications
- Screen size: 5 Inch
- Screen type: TFT LCD
- Resolution: 800x480
- Aspect Ratio: 16:9
- Brightness: 800cdm2
- Format: AUTO/NTSC/PAL
- Input Signal: AV/HDMI
- Work Status OSD: Yes
- Mini HDMI In: 1.1 Digital
- Output Signal: AV
- Input Voltage: 7-28V
- Power Consumption: 560mA 12V
- DVR: Yes
- Recording Format: AVI
- Supported TF Card: Max 32GB Micro SD
- Antenna Connector: SMA
- Screen Dimensions: 129x89x11mm
- Sensititivty: -90dBm
- Frequency Range: 5658-5917
- Channels: 37
- Autoscan Channel: Yes
- Audio: 6.5MHz
- Object Distance: 43mm
- IDP: 63mm
- FOV: 45 Degrees
- Reflectivity: approx 85%
- Power Connector: XT60 (No Battery Included)
